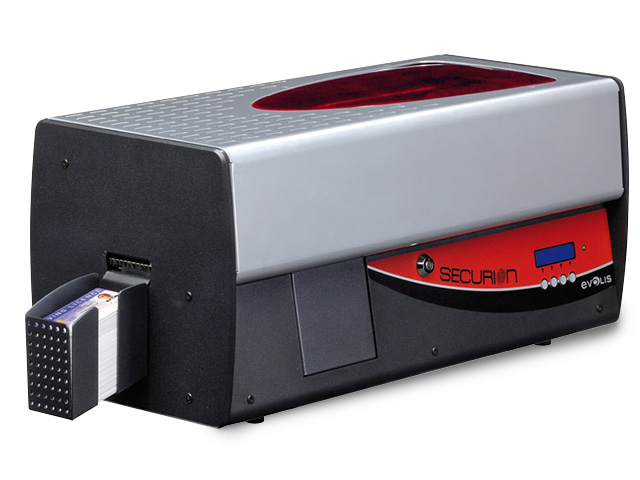

Evolis Securion Card Printer Free Shipping FedEx Ground!!!

$7,925.99 $5,549.99

Part Number: SEC101RBH-BELY     EVOLIS, SECURION MAG ISO SMART CONTACTLESS PRINTER AND LAMINATOR WITH DUAL HICO/LOCO ENCODER, SCM DUAL CHIP ENCODER, CONTACTLESS ANTENNA. ETHERNET AND USB. POWER AND USB CABLE INCLUDED The Securion printer is the best solution for personalizing and laminating secure cards at customer-facing counters. It caters to the growing need for security and fraud control and produces cards that will last significantly longer. Securion comes with a color print module and a laminating station, both operating in dual-sided mode. It takes just one pass to print, encode and laminate a secure card.

General features

  • Color printing module and lamination station
  • Direct-to-card dye-sublimation/Resin thermal transfer
  • Single or dual-sided printing, edge-to-edge
  • 300 dpi print head (11.8 dots/mm)
  • 16 million colors
  • 16 MB of memory (RAM), to save two cards (dual-sided) to memory
  • Laminating mode: heat transfer
    • Varnish or patch film
    • Dual-sided lamination
    • Speed: 2 mm/s to 18 mm/s (0.08”/s to 0.71”/s)
    • Temperature: 100° C to 180° C (212° F to 356° F)


Print and lamination speed

  • Single-sided YMCK printing, single-sided lamination: 95 - 120 cards/hour
  • Dual-sided YMCK-K printing, single-sided lamination: 85 - 105 cards/hour
  • Color (YMCKO): 120 - 150 cards/hour


Optional features

  • Additional 100-card feeder
  • USB encoding over IP through additional USB Net Server module


Additional encoding modules

  • Modules available:
    • Magnetic stripe encoder ISO 7811 HiCo/LoCo, JIS2
    • Smart contact station ISO 7816-2
    • Contact smart card encoder - PC/SC, EMV 2000-1
    • Contactless smart card encoder - ISO 14443A, B, ISO 15693, Mifare, DesFire, HID iCLASS
    • Other specific encoders upon request
  • Internal USB or IP ports
  • Options can be combined
  • Factory-installed or installed on site


Interfaces

  • USB (1.0, 1.1, 2.0, 3.0), cable supplied
  • Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

Safety

  • Locking system to secure access to blank cards, ribbons, films and defective cards
  • Kensington® security lock
  • Password protected

Display

  • Two-line LCD display and LED status indicators.


Card management and specifications

  • Removable feeder capacity: 100 cards (0.76 mm - 30 mil)
  • Output hopper capacity: 100 cards (0.76 mm - 30 mil)
  • Reject tray capacity: 15 cards (0.76 mm – 30 mil)
  • Card thickness: 0.25 to 1 mm (10 to 50 mil), lamination recommended from 0.76 mm (30 mil), not recommended below 0.50 mm (20 mil)
  • Card types:
    • PVC cards
    • PVC composite cards
    • Polycarbonate (PC) cards
    • PET-F, PET-G cards
    • ABS cards1
    • Special varnished cards1
  • Card format: ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm - 3.375” x 2.125”)
  • Lamination on standard PVC cards recommended with 0.6 mil patch or varnish


Evolis High Trust® ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.
  • Ribbon saver for monochrome printing

WishlistCompare
Available: In stock

#Code Products: SEC101RBH-BELY

Description

The solution for highly secured cards

The Securion printer is the best solution for personalizing and laminating secure cards at customer-facing counters.

It caters to the growing need for security and fraud control and produces cards that will last significantly longer.

Securion comes with a color print module and a laminating station, both operating in dual-sided mode. It takes just one pass to print, encode and laminate a secure card.

Securion is ideal for delivering secure cards:

Additional Information

Features

General features

  • Color printing module and lamination station
  • Single or dual sided printing and lamination
  • Edge-to-edge printing
  • Color dye sublimation, monochrome thermal transfer
  • 300 dpi print head (11.8 dots/mm)
  • 16 million colors
  • 16 MB of memory (RAM), to save two cards (dual-sided) to memory
  • Laminating mode: heat transfer
    • Varnish or patch film
    • Dual-sided lamination
    • Speed: 2 mm/s to 18 mm/s (0.08”/s to 0.71”/s)
    • Temperature: 100° C to 180° C (212° F to 356° F)
  • Additional 100-card feeder
  • USB encoding over IP through additional USB Net Server module

Optional features

Print | Fonts

Print and lamination speed

  • Single-sided YMCK printing, single-sided lamination: 95 – 120 cards/hour
  • Dual-sided YMCK-K printing, single-sided lamination: 85 – 105 cards/hourColor (YMCKO): 120 – 150 cards/hour
  • Arial, Arial bold
  • Barcode: Code 39, Code 128, EAN 13, 2/5 interleaved

 Resident fonts

  • Arial, Arial bold
  • Barcode: Code 39, Code 128, EAN 13, 2/5 interleaved

Additional encoding modules

  • Available modules:
    • Magnetic stripe encoder ISO 7811 HiCo/LoCo, JIS2
    • Smart contact station ISO 7816-2
    • Contact smart card encoder – PC/SC, EMV 2000-1
    • Contactless smart card encoder – ISO 14443A, B, ISO 15693, Mifare, DesFire, HID iCLASS
    • Other specific encoders upon request
  • Internal USB or IP ports
  • Options can be combined
  • Factory-installed or installed on site



Interfaces | Safety | Display

Interfaces

  • USB (1.0, 1.1, 2.0, 3.0)
  • Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

Safety

  • Locking system to secure access to blank cards, ribbons, films and defective cards
  • Kensington® security lock
  • Password protected

Display

  • Two-line LCD display and LED status indicators.

Card Management and Specifications

  • Removable feeder capacity: 100 cards (0.76 mm – 30 mil)
  • Output hopper capacity: 100 cards (0.76 mm – 30 mil)
  • Reject tray capacity: 15 cards (0.76 mm – 30 mil)
  • Card thickness: 0.25 to 1 mm (10 to 50 mil), lamination recommended from 0.76 mm (30 mil), not recommended below 0.50 mm (20 mil)
  • Card types:
    • PVC cards
    • PVC composite cards
    • Polycarbonate (PC) cards
    • PET-F, PET-G cards
    • ABS cards1
    • Special varnished cards1
  • Card format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm – 3.375” x 2.125”)
  • Lamination on standard PVC cards recommended with 0.6 mil patch or varnish

Software

  • Compatible with Windows™: XP SP3 32/64, Vista 32/64, W7 32/64, W8 32/64
  • Mac and Linux OS upon request

Evolis High Trust® Ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.

  • Ribbon saver for monochrome printing
Ribbons Ribbon capacities
5 panel YMCKO color ribbon 200 prints / roll
6 panel YMCKO-K color ribbon 200 prints / roll
1/2 panel YMCKO color ribbon 400 prints / roll
Unichroma™ color ribbon for polycarbonate cards 200 prints / roll
2 panel KO black monochrome ribbon 500 prints / roll
Monochrome ribbons: black, red, green, blue, white, gold and silver 1000 prints / roll1
  • Easy-to-load cassette for laminate films
  • Patches and varnishes on request: holograms, security inks, specific cuts
Laminating films Capacities
Hologram varnish 400 prints / roll
Clear varnish 400 prints / roll
Clear patch, 1.0 mil 200 prints / roll
Clear patch, 0.6 mil 200 prints / roll
Alternate patch front/back, 0.6 mil and 1.0 mil 200 prints / roll

Power

  • Power supply: 100-240 Volts AC, 50-60 Hz, 1.8 A
  • Printer : 24 Volts DC, 3 A

Operating environment

  • Min/max operating temperature: 15° / 30° C (59° / 86° F)
  • Humidity: 20% to 65% non-condensing
  • Min/max storage temperature: -5° / +70° C (23° / 158° F)
  • Storage humidity: 20% to 70% non-condensing
  • Operating ventilation: open air

Sound (Evaluated according to the ISO 7779 Standard)

Sound pressure in assistant position LpAm (color mode YMCKO):

  • When operating: 48dB (A)
  • In sleep mode: background noise level

Shipping Information

Packaging content

  • Printer
  • CD-ROM with printer drivers, user manuals
  • Cleaning kit
  • USB cable
  • Output hopper
  • Power supply and cord
  • Laminate film loading cassette
  • 3 empty cores for laminate films

Size and weight

  • Dimensions (H x W x L):
    • Without the output tray: 274.64 x 262.16 x 562.70 mm (10.81” x 22.15” x 10.32”)
    • With the output tray: 274.64 x 262.16 x 658.20 mm (10.81” x 25.91” x 10.32”)
  • Weight: 15.4 kg (33.15 Lbs)

Warranty

  • 2 years (printer, lamination station, print head and lamination hot roller)2, limited to 100,000 passes
  • Warranty extension available as an option

1 Under specific conditions / 2 Warranty subject to observance of specific conditions and use of Evolis High Trust® ribbons.
